H05V – U

Standard
TS EN 50525–2–31
BS EN 50525–2–31 (Previously BS 6004)
VDE 0281–3
UK CODE 6491X
Application Area
Installation in dry area, Switching and distribution electric board & closed area, laying in conduit over & under plaster for shops, factories and houses.
Construction / Structure
Conductor:
Solid Copper Conductor – Class (1)
Insulation:
Polyvinyl Chloride (PVC) Compound Type TI1

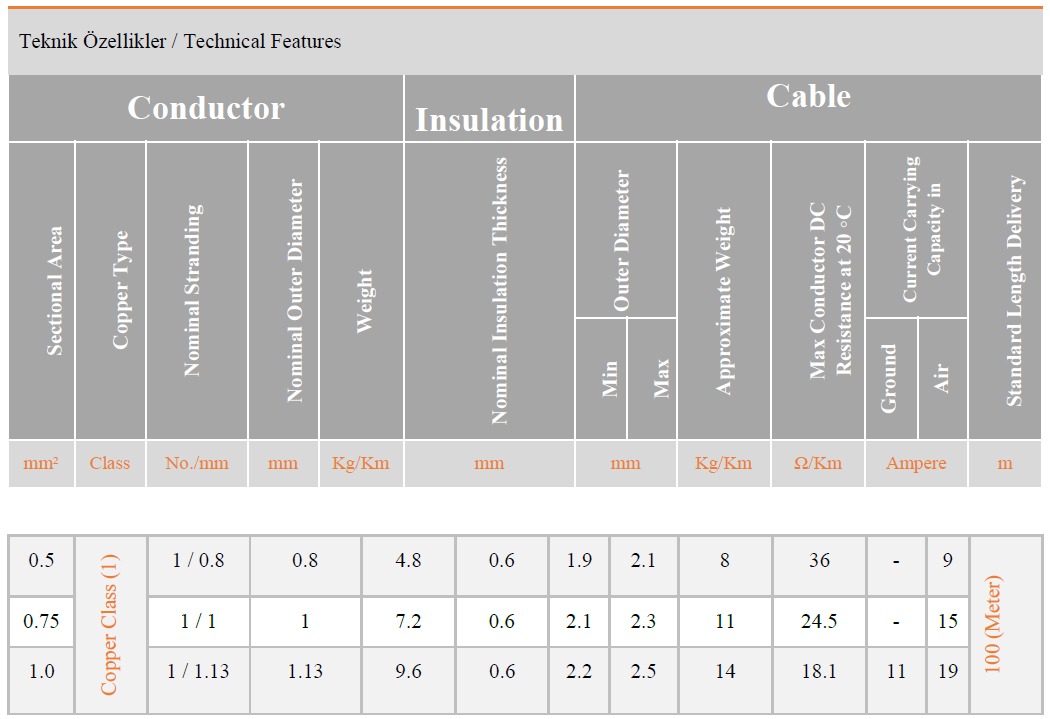

Technical Data
Allowable Operating Temperature: 70 °C
Maximum S.C. Temperature: 160 °C
Voltage Test (AC): (2 – 2.5) KV
Installation Temperature Min.: 5 °C
