H05V2 – K

300 / 500 Voltage PVC Insulted, Heat Resistant, Flexible Single Core Cable.

Standard
TS EN 50525–2–31
BS 6004
VDE 0281–7
UK CODE 2491 XHR
Application Area
Installation in dry area and resisting for heat (90 °C), Switching and distribution electric board & closed area, laying in conduit over & under plaster for shops, factories and houses.
Construction / Structure
Conductor:Flexible Copper Conductor – Class (5)
Insulation:High Temperature Polyvinyl Chloride (PVC) Compound Type TI3

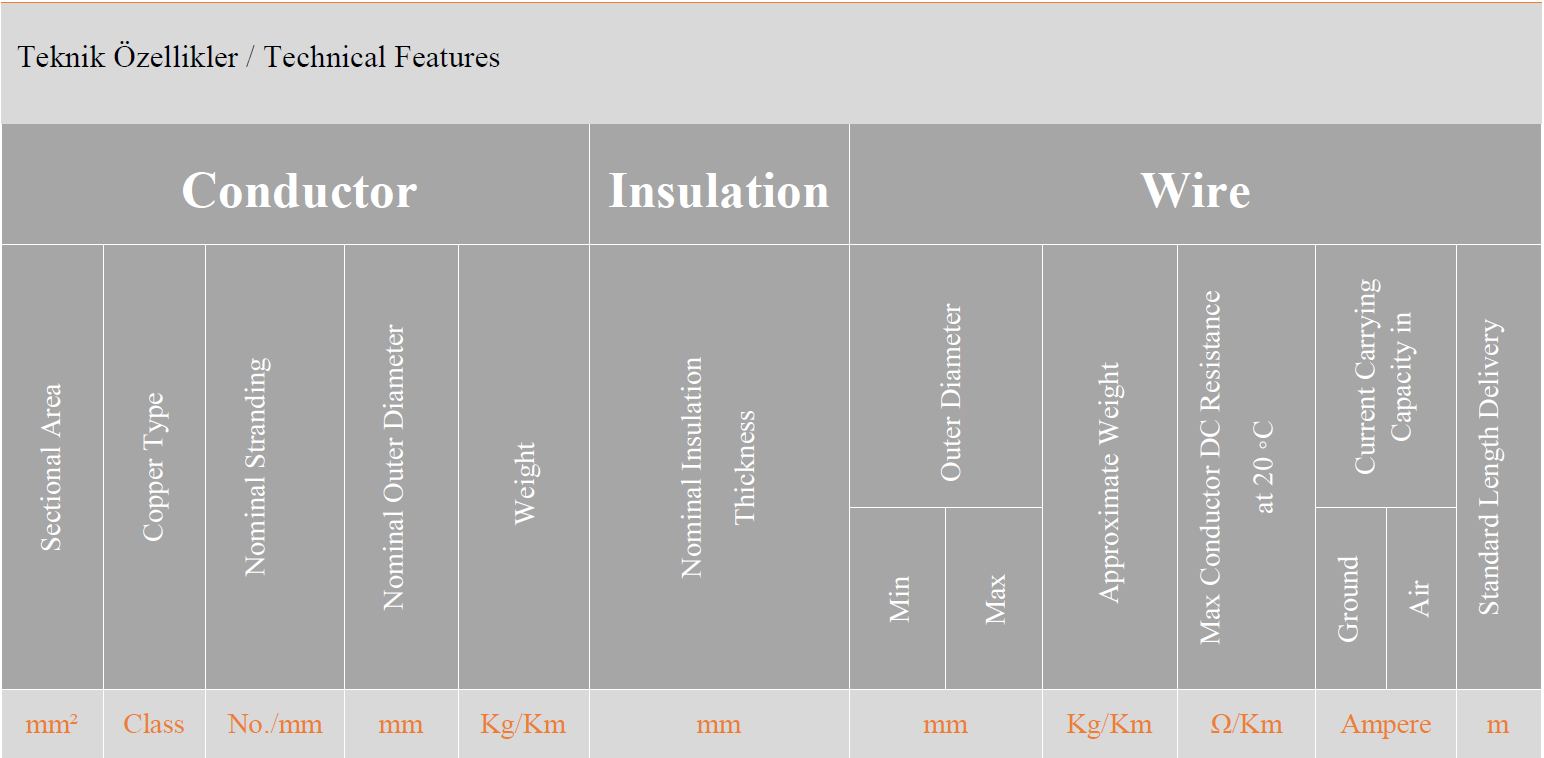

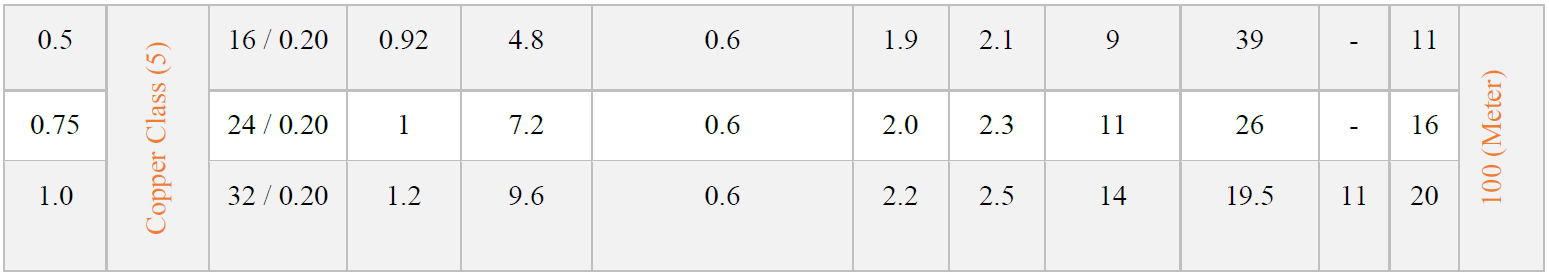

Technical Data
Allowable Operating Temperature: 70 °C
Maximum S.C. Temperature: 160 °C
Voltage Test (AC): (2 – 2.5) KV
Installation Temperature Min.: 5 °C
