H07V2 – U

450 / 750 Voltage PVC Insulted, Heat Resistant, Single Core Cable.

Standard
TS EN 50525–2–31
BS EN 50525–2–31 (Previously BS 6004)
VDE 0281–3
UK CODE 6491X
Application Area
Installation in dry area and resisting for heat (90 °C), Switching and distribution electric board & closed area, laying in conduit over & under plaster for shops, factories and houses.
Construction / Structure
Conductor: Solid Copper Conductor – Class (1)
Insulation: High Temperature Polyvinyl Chloride (PVC) Compound Type TI3

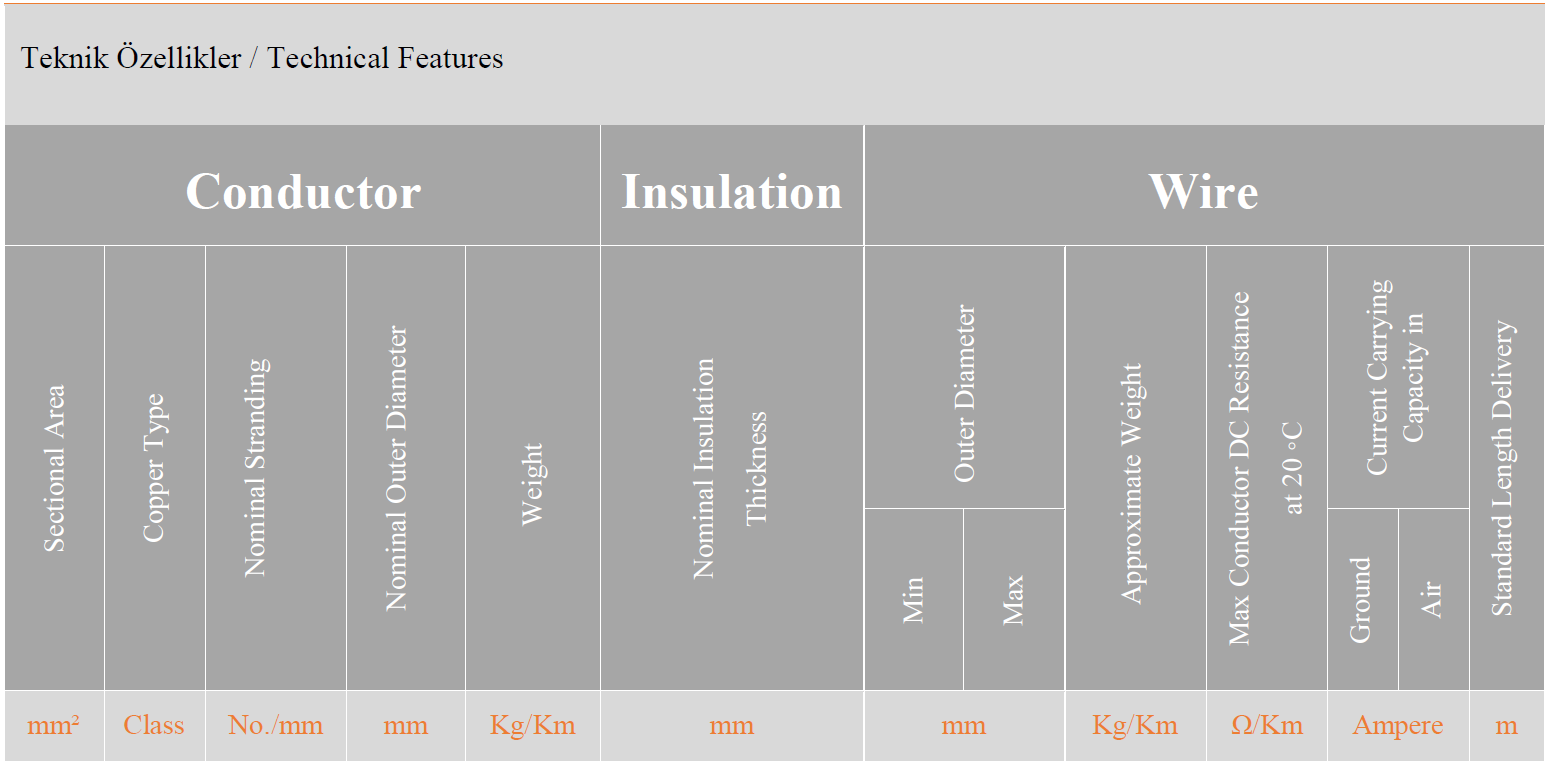

Technical Data
Allowable Operating Temperature: 90 °C
Maximum S.C. Temperature: 160 °C
Voltage Test (AC): (2 – 2.5) KV
Installation Temperature Min.: 5 °C
