H07V3 – K

450 / 750 Voltage PVC Insulated, Non-Sheathed Single Core Cables.

Standard
TS EN 50525–2–31
VDE 0281–9
Application Area
Installation in dry area and suite for low temperature (– 40 °C) area, Switching and distribution electric board & closed area, laying in conduit over & under plaster for shops, factories and houses.
Construction / Structure
Conductor: Flexible Copper Conductor – Class (5)
Insulation: High Temperature Polyvinyl Chloride (PVC) Compound Type TI4 acc)

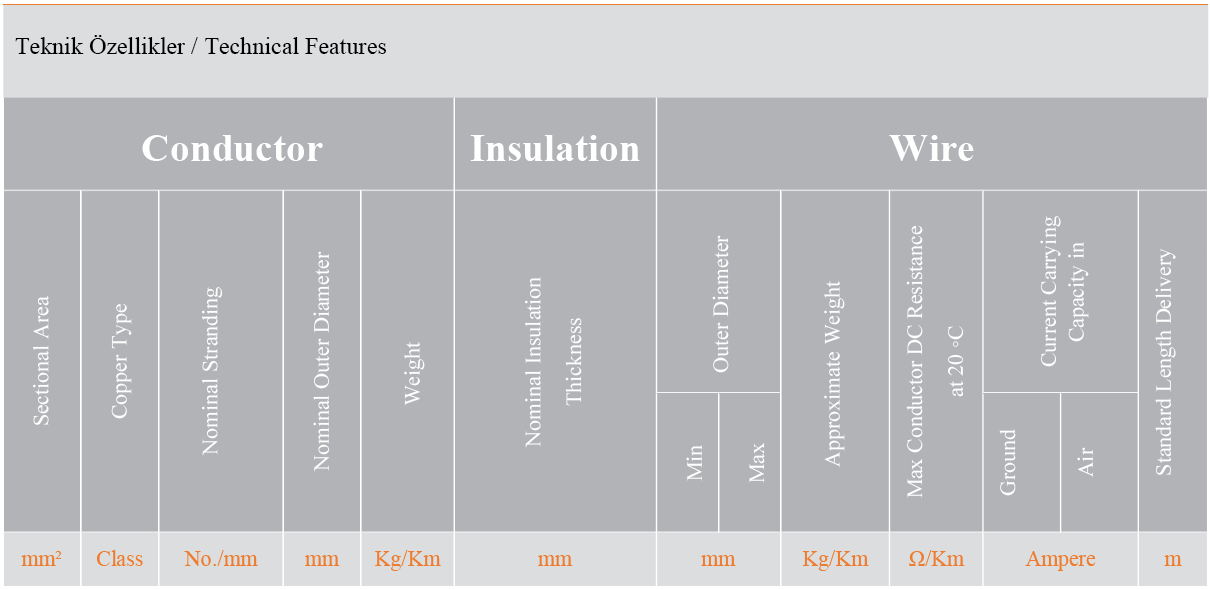

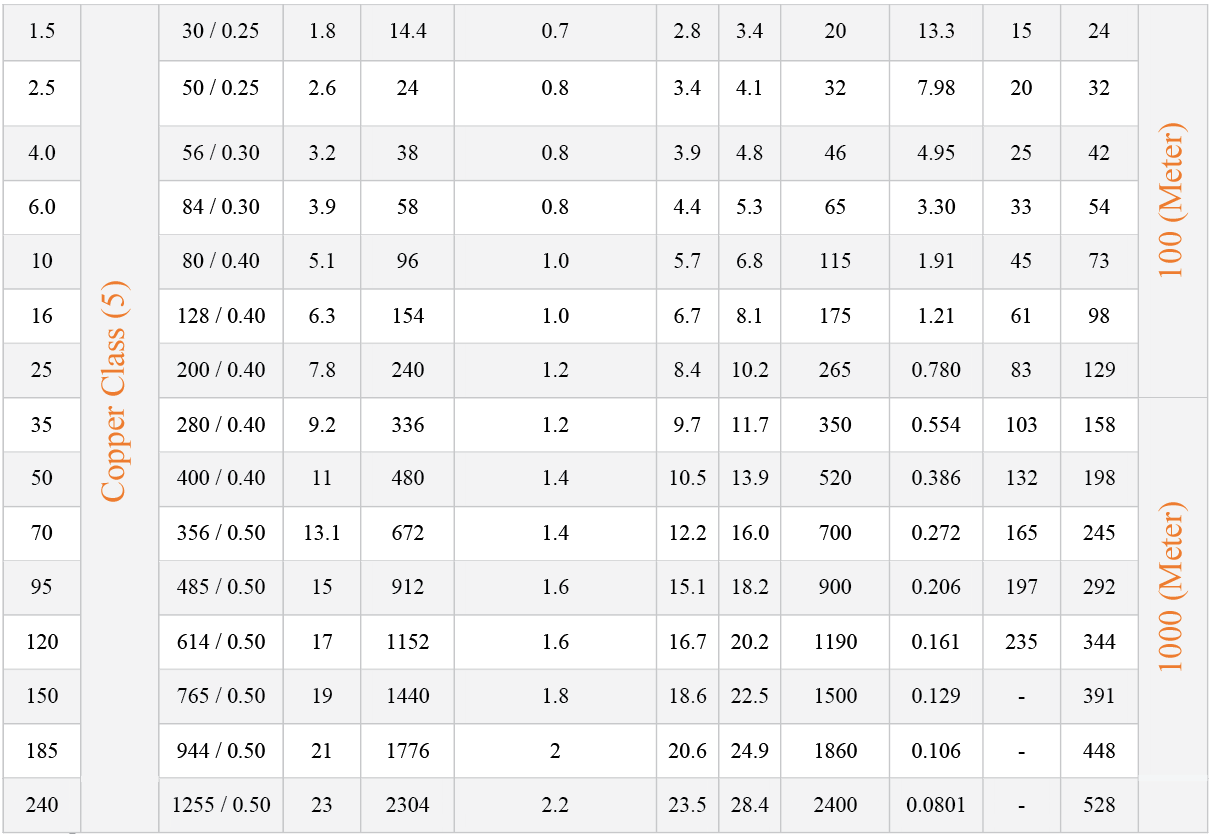

Technical Data
Allowable Operating Temperature: – 40°C
Maximum S.C. Temperature: 160 °C
Voltage Test (AC): (2 – 2.5) KV
Installation Temperature Min.: 5 °C
